A rattling engine bay, a shudder at idle, or a clunk every time you shift into gear rarely happens without a reason. On the Mazda 323, one of the most overlooked culprits is a worn engine mount, specifically the BR74-39-040. This small rubber-and-metal component quietly holds your engine steady and absorbs vibration, but once it degrades, the ride quality — and eventually the drivetrain — starts to suffer.
Many drivers ignore the early symptoms because they seem minor. A slight vibration here, a small knock there. But a failing mount rarely stays a minor issue for long. Left unaddressed, it can accelerate wear on transmission components, exhaust hangers, and even nearby wiring harnesses.
This guide breaks down what the BR74-39-040 mount does, how to recognize the symptoms of failure, and what's involved when it's time to change engine mounts on your Mazda 323. Whether you're a DIY owner or a workshop technician sourcing parts, understanding this component will help you catch problems early and keep your car running smoothly.

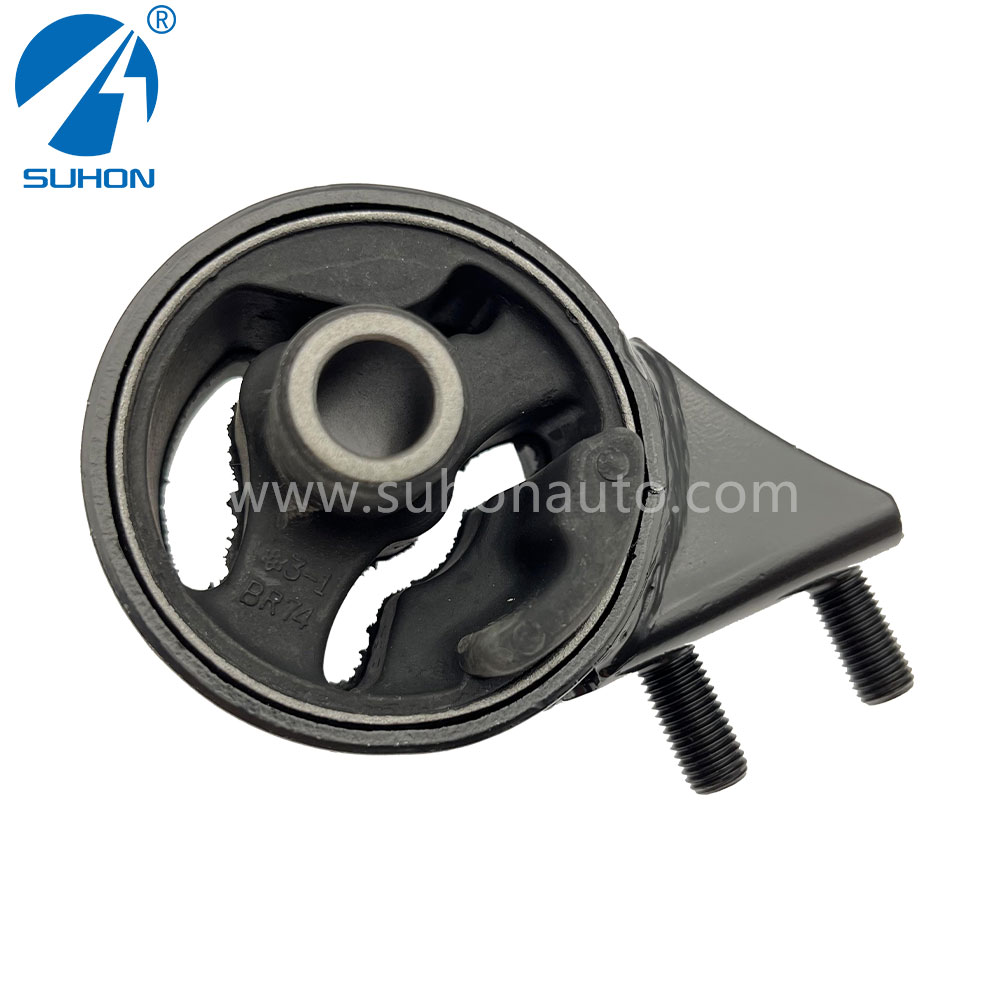

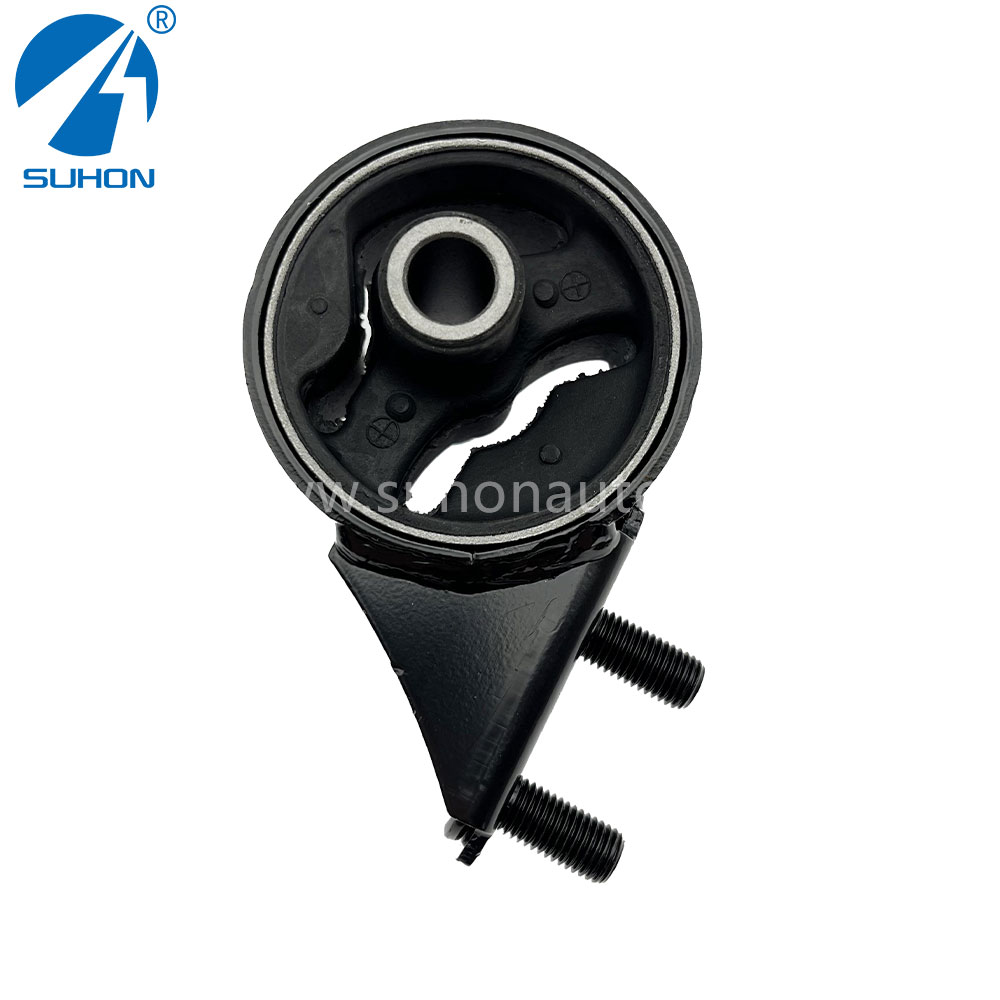

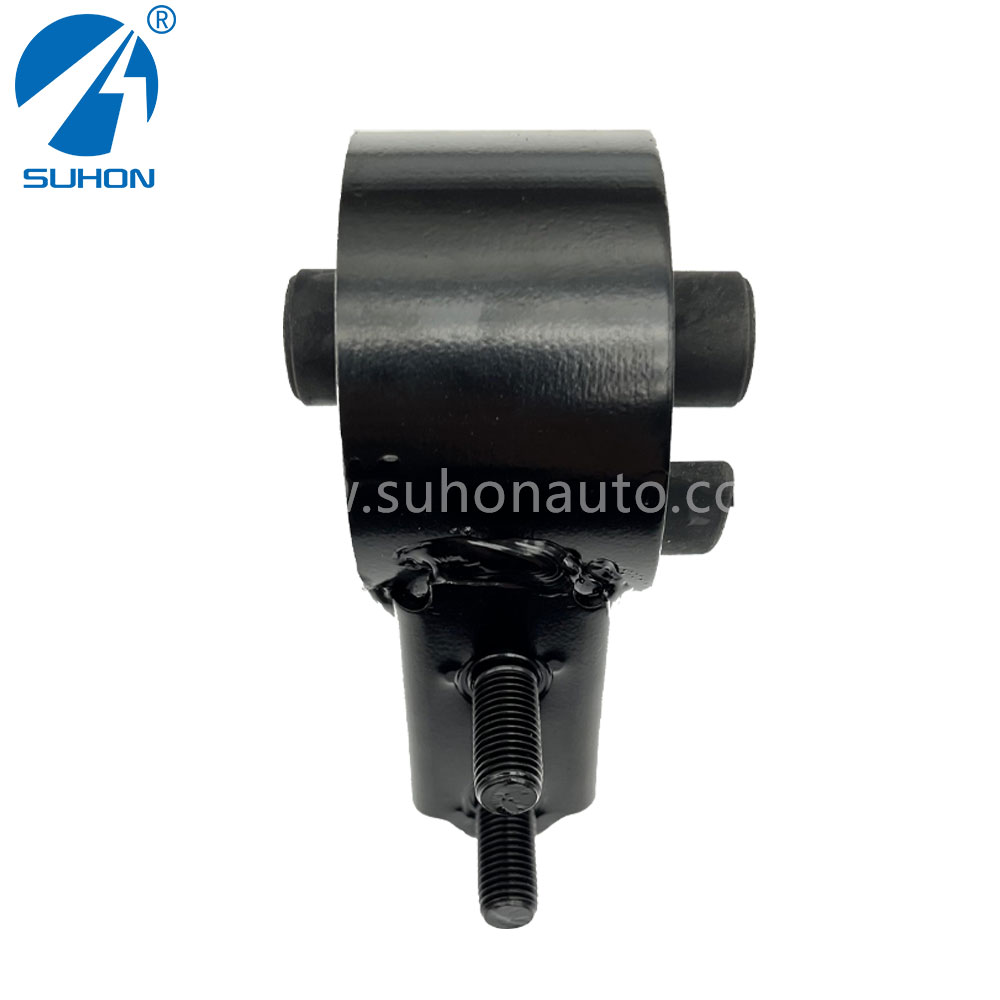

The BR74-39-040 is a factory-style mounting point that secures the engine to the vehicle's chassis on specific Mazda 323 models. It's made from a rubber compound bonded to a metal bracket, designed to flex slightly while absorbing the constant vibration produced by a running engine.
Over time, heat cycles, oil exposure, and general wear cause the rubber to harden, crack, or separate from the metal core. Once that happens, the mount can no longer control engine movement effectively, and the symptoms below start to appear.
Recognizing the signs early can save you from a more expensive repair down the road. Most drivers notice one or more of the following:
Excessive vibration at idle — a shaking sensation through the cabin or steering wheel
Clunking noises when shifting gears or accelerating from a stop
Engine shifting visibly when you look under the hood during acceleration
Increased noise from the engine bay, especially over bumps
Uneven wear on other components, like exhaust mounts or belts, due to excess movement
Here's a quick breakdown of how these symptoms typically relate to severity:
Symptom | Likely Cause | Urgency |
|---|---|---|
Mild vibration at idle | Early rubber hardening | Monitor, plan replacement soon |
Clunking on gear shifts | Mount separation or cracking | Replace within weeks |
Visible engine movement | Mount failure or broken bracket | Replace immediately |
Rattling over bumps | Loose or degraded mount | Inspect and replace promptly |
If your Mazda 323 shows more than one of these signs at once, it's a strong indication that the mount has already progressed past minor wear.
Replacing a mount isn't overly complex, but it does require care since the engine needs temporary support while the old part is removed. Here's a general outline of the process:
Support the engine. Use a jack with a wooden block or a specialized engine support bar to hold the engine steady before removing the mount.
Remove the mounting bolts. Loosen and remove the bolts securing the BR74-39-040 to both the engine bracket and the chassis.
Extract the old mount. With the engine supported, carefully pull out the worn mount. Inspect the surrounding bracket for cracks or corrosion while it's exposed.
Install the new mount. Position the replacement mount, hand-tighten the bolts, then torque them to the manufacturer's specification.
Lower the engine slowly. Remove the support gradually, checking for proper alignment as the engine settles onto the new mount.
Test drive. Start the engine and listen for unusual noise or vibration. A properly installed mount should noticeably reduce shaking and clunking.
If you're not confident handling the engine support step, it's worth having a qualified mechanic handle the job. A mount that shifts during removal can cause damage to surrounding components.
Not all replacement parts are built to the same standard, and this is where the choice of manufacturer matters. When you change engine mounts, the quality of the rubber compound directly affects how long the part lasts and how well it absorbs vibration.
Suhon Auto Parts, established in 1995 and certified to ISO9001 standards, has spent more than two decades manufacturing engine mounts for the global aftermarket under its SUHON and DIDN brands. Its rubber compounds are formulated using Thailand RSS3 and Vietnam SVR3L raw materials, chosen for their resistance to temperature extremes, aging, and oil exposure. Every batch goes through OE-standard testing in a dedicated rubber laboratory before it reaches distributors and workshops.
For a part like the BR74-39-040, this level of consistency matters. A mount that hardens prematurely or separates from its bracket within a year of installation isn't just an inconvenience — it's a repeat expense. Choosing a manufacturer with a proven rubber formulation and consistent quality control reduces the odds of a comeback repair.
A worn engine mount rarely announces itself loudly at first. It starts subtly, with a bit of extra vibration or a faint clunk, and builds from there until it's impossible to ignore. Catching the BR74-39-040's symptoms early, understanding the replacement process, and sourcing a durable part all play a role in keeping your 323 comfortable and reliable on the road.
If you're sourcing replacement parts for a workshop or distribution business, it's worth researching manufacturers who back their products with real quality standards rather than just a low price point. A mount built to last will always cost less over the life of the vehicle than one that needs replacing twice.
How long does a Mazda 323 engine mount typically last?
It varies with driving conditions, but most mounts show noticeable wear between five and eight years, sooner in hot climates or with frequent stop-and-go driving.
Can I drive with a failing engine mount?
Short distances are usually fine, but prolonged driving on a failed mount can damage transmission components, exhaust hangers, and other nearby parts.
Is it possible to replace just one mount, or should they all be changed together?
Many mechanics recommend replacing all mounts in a set if one has failed, since they typically wear at a similar rate and replacing them together saves on labor in the long run.
